VaultKit

License Build Status Version Go Version Ruby Version

A secure, policy-driven control plane for unified data access across heterogeneous data sources.

TL;DR: VaultKit prevents credential sprawl and enforces data access policies across databases. Write queries in AQL (vendor-neutral JSON), policies decide who sees what, FUNL executes safely. Schema changes require explicit review—no silent data exposure.

🎯 What is VaultKit?

VaultKit provides enterprise-grade governance and security for data access, enabling applications, engineers, and AI agents to query multiple data sources through a unified, policy-controlled interface.

VaultKit is a control plane that governs how data is accessed across your organization. It centralizes authentication, authorization, policy evaluation, and access control—ensuring that every data request is properly authenticated, authorized, and audited before execution.

Core Responsibilities

⚡ What is FUNL?

FUNL (Functional Universal Query Language) is the data plane and execution engine that powers VaultKit’s query capabilities. While VaultKit decides if and how data can be accessed, FUNL handles the actual execution.

Core Responsibilities

FUNL is designed to be lightweight, stateless, and horizontally scalable—making it ideal for high-throughput data access scenarios.

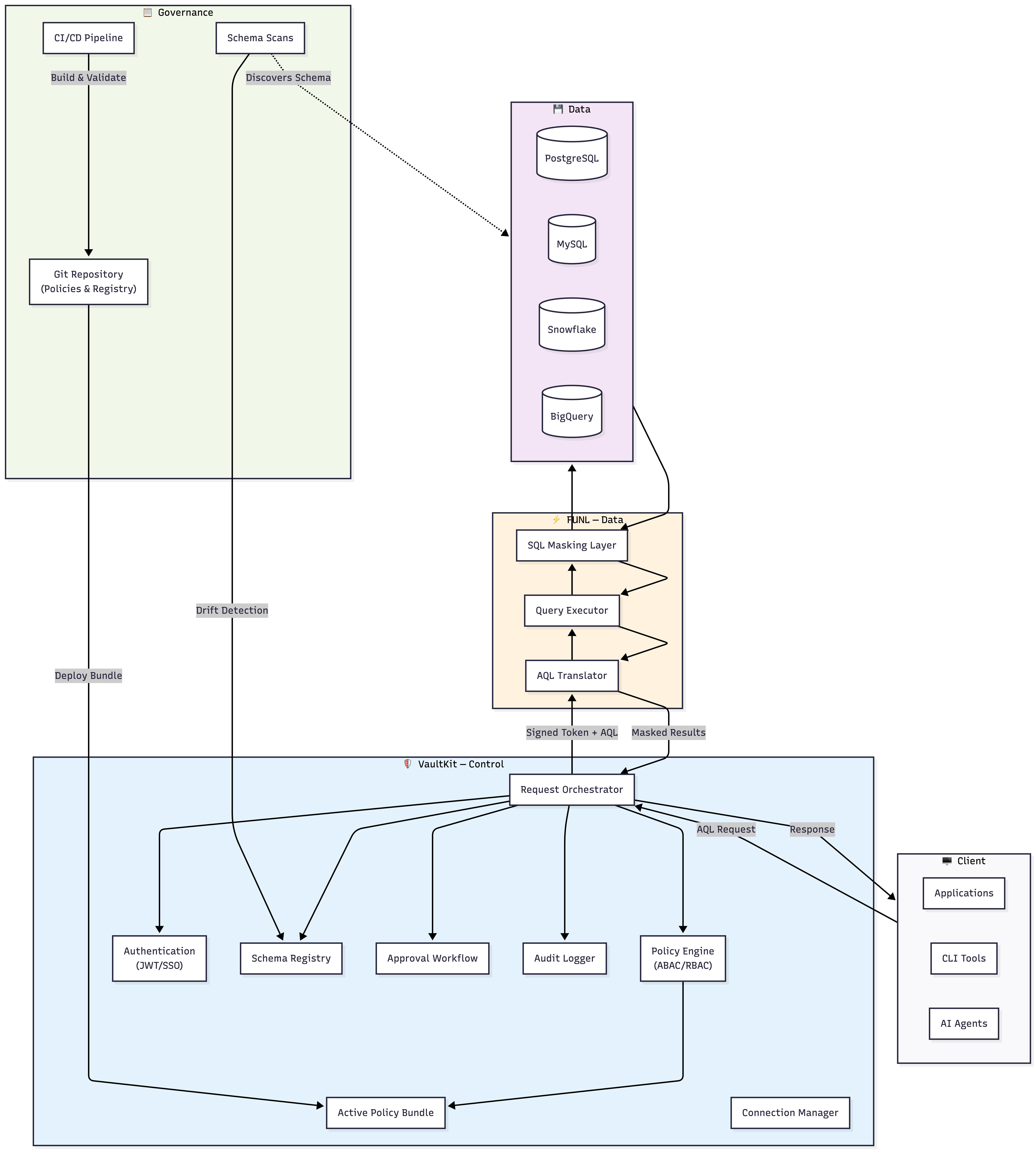

Architecture

Architecture

Component Breakdown

VaultKit (Control Plane)

FUNL (Data Plane)

Governance Layer

📋 Schema Discovery & Policy Management

VaultKit’s approach to schema evolution is designed for security, auditability, and safe change management.

The Core Philosophy: Intent vs. Reality

VaultKit deliberately separates:

This separation prevents silent data exposure. When new tables or sensitive columns appear, they require explicit policy review before access is granted.

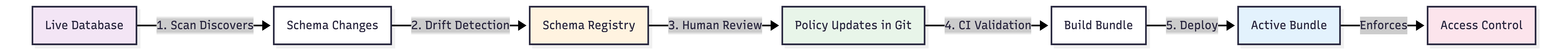

Schema Discovery Flow

How It Works

Policy Bundles are versioned artifacts that contain:

Schema Scans perform these steps:

  1. Introspect datasources via FUNL
  2. Discover tables and columns
  3. Classify fields (PII, financial, internal)
  4. Compute diff against runtime registry
  5. Surface changes for review

Key Safety Principle:

Scans inform. Bundles enforce. Humans decide.

Scans never automatically update active policies. This ensures:

Quick Example: Handling Schema Drift

# 1. Discover schema changes (safe, read-only)
vkit scan production_db

# Output shows drift:
# + dataset: customers
#     + field: ssn (string) [PII] ⚠️  NEW - requires policy
#     ~ field: email (text → varchar) [PII] ✓ Already masked

# 2. Review and update baseline
vkit scan production_db --apply

# 3. Update policies in Git
vim policies/customer_data.yaml

# 4. Build and deploy new bundle
vkit policy bundle
vkit policy deploy

name: Schema Drift Check
on: [schedule, push]
jobs:
  drift-detection:
    runs-on: ubuntu-latest
    steps:
      - name: Scan all datasources
        run: vkit scan --all --fail-on-drift

      - name: Create PR if drift detected
        if: failure()
        run: |
          vkit scan --all --diff > drift-report.md
          gh pr create --title "Schema Drift Detected" --body-file drift-report.md

📘 Full Bundling & Scan System Documentation →

📄 AQL to Native Query Translation

AQL (Access Query Language) is a structured JSON format that describes what to fetch, not how. This abstraction allows VaultKit to enforce policies consistently across different database engines.

AQL Structure

AQL is a structured JSON specification with the following top-level fields:

{
  "source_table": "table_name",
  "columns": ["field1", "field2"],
  "joins": [],
  "aggregates": [],
  "filters": [],
  "group_by": [],
  "having": [],
  "order_by": null,
  "limit": 0,
  "offset": 0
}

Translation Examples

Simple Query:

{
  "source_table": "customers",
  "columns": ["email", "country", "revenue"],
  "filters": [
    { "field": "country", "operator": "eq", "value": "US" },
    { "field": "revenue", "operator": "gt", "value": 10000 }
  ],
  "limit": 100
}

FUNL Translation → PostgreSQL:

SELECT email, country, revenue
FROM customers
WHERE country = $1 AND revenue > $2
LIMIT 100

FUNL Translation → MySQL:

SELECT `email`, `country`, `revenue`
FROM `customers`
WHERE `country` = ? AND `revenue` > ?
LIMIT 100

Complex Query with JOINs and Aggregates:

{
  "source_table": "users",
  "joins": [
    {
      "type": "LEFT",
      "table": "orders",
      "left_field": "users.id",
      "right_field": "orders.user_id"
    }
  ],
  "columns": ["users.email", "users.username"],
  "aggregates": [
    {
      "func": "sum",
      "field": "orders.amount",
      "alias": "total_spent"
    }
  ],
  "group_by": ["users.email", "users.username"],
  "having": [
    {
      "operator": "gt",
      "field": "SUM(orders.amount)",
      "value": 500
    }
  ],
  "order_by": {
    "column": "total_spent",
    "direction": "DESC"
  },
  "limit": 10
}

FUNL Translation → PostgreSQL:

SELECT users.email, users.username, SUM(orders.amount) AS total_spent
FROM users
LEFT JOIN orders ON users.id = orders.user_id
GROUP BY users.email, users.username
HAVING SUM(orders.amount) > $1
ORDER BY total_spent DESC
LIMIT 10

Advanced Features

Complex Filtering with OR Logic:

{
  "source_table": "users",
  "columns": ["id", "email", "role"],
  "filters": [
    {
      "logic": "OR",
      "conditions": [
        { "field": "users.role", "operator": "eq", "value": "admin" },
        { "field": "users.role", "operator": "eq", "value": "manager" }
      ]
    },
    { "field": "orders.amount", "operator": "gt", "value": 100 }
  ]
}

Translation:

SELECT id, email, role
FROM users
WHERE (users.role = $1 OR users.role = $2) AND orders.amount > $3

Supported Operators:

Supported Aggregations:

Supported JOINs:

SQL-Level Masking

FUNL’s Masking Dialect System applies transformations directly in SQL based on VaultKit’s policy decisions:

Masking Type PostgreSQL MySQL Snowflake
Full '*****' AS email '*****' AS email '*****' AS email
Partial CONCAT(LEFT(email, 3), '****') CONCAT(LEFT(email, 3), '****') CONCAT(LEFT(email, 3), '****')
Hash ENCODE(SHA256(email::bytea), 'hex') SHA2(email, 256) SHA2(email, 256)

✨ Key Features

VaultKit (Control Plane)

Feature Description
AQL Orchestration Vendor-neutral query language prevents SQL injection and enables policy enforcement
Policy Engine Attribute-based access control with support for clearance levels, regions, sensitivity tags, and time windows
Policy Priority System Hierarchical decision making: deny > require_approval > mask > allow
Field-Level Policies Match rules based on dataset name, field sensitivity, categories (pii, financial, etc.), or specific field names
Context-Aware Rules Policies evaluate requester role, clearance level, region, environment, and time constraints
Approval Workflows Require manager/security approval for accessing PII, financial data, or production environments
Zero-Trust Sessions Short-lived, cryptographically-signed tokens with automatic expiration
Credential Abstraction Never expose database credentials to users—supports multiple secret backends
Git-Backed Governance All policies and registries versioned in Git with full audit trail
Schema Drift Detection Automated discovery of database changes with manual approval workflow
Comprehensive Auditing Every query logged with user identity, timestamp, policy decisions, and results metadata
CLI & SDK Rich command-line tools (vkit) and programmatic SDK for integration

FUNL (Data Plane)

Feature Description
Multi-Engine Translation Supports PostgreSQL, MySQL, Snowflake, BigQuery with identical AQL interface
SQL-Level Masking Masking applied during query execution—no post-processing overhead
Injection Prevention All queries use parameterized execution with proper type binding
Raw SQL Support Supports raw SQL for schema introspection and admin operations (policy-controlled)
Horizontal Scaling Stateless design enables running multiple FUNL instances behind a load balancer
JWT Verification Only executes queries signed by VaultKit’s private key

🚀 Getting Started

Prerequisites Checklist

Before installing VaultKit, ensure you have:

🚀 Quick Start (Local Development)

The fastest way to get VaultKit running locally using Docker Compose:

1. Clone the repository

git clone git@github.com:ndbaba1/vaultkit.git
cd vaultkit

2. Create secrets

cp .env.example infra/secrets/.env

Edit infra/secrets/.env:

POSTGRES_USER=vaultkit
POSTGRES_PASSWORD=secret
POSTGRES_DB=vaultkit_development
DATABASE_URL=postgres://vaultkit:secret@postgres:5432/vaultkit_development
FUNL_URL=http://funl-runtime:8080
RAILS_ENV=development

3. Add signing keys

Place your RSA key pair in the secrets directory:

# Generate keys if you don't have them
openssl genpkey -algorithm RSA -out infra/secrets/vkit_priv.pem -pkeyopt rsa_keygen_bits:2048
openssl rsa -pubout -in infra/secrets/vkit_priv.pem -out infra/secrets/vkit_pub.pem

These keys are used to sign and verify access grants.

4. Start VaultKit

cd infra
docker compose up --build

Services:

🎉 VaultKit is now running locally! You can now configure datasources and begin querying data through the control plane.

Quick Start (CLI-Based Setup - 5 Minutes)

This streamlined path gets you querying data quickly with the CLI. For production deployments, see Detailed Setup below.

1. Generate Cryptographic Keys

# Generate RSA key pair for token signing
openssl genpkey -algorithm RSA -out vaultkit_private.pem -pkeyopt rsa_keygen_bits:2048
openssl rsa -pubout -in vaultkit_private.pem -out vaultkit_public.pem

# Set environment variables
export VKIT_PRIVATE_KEY="$(pwd)/vaultkit_private.pem"
export VKIT_PUBLIC_KEY="$(pwd)/vaultkit_public.pem"
export FUNL_PUBLIC_KEY="$(pwd)/vaultkit_public.pem"

⚠️ Security Note: Keep your private key secure. Add *.pem to your .gitignore.

2. Start FUNL

# Using Docker (recommended)
export FUNL_URL="http://localhost:8080"
docker compose up -d

# Verify FUNL is running
curl http://localhost:8080/health

3. Install VaultKit CLI

git clone https://github.com/yourorg/vaultkitcli.git
cd vaultkitcli
gem build vaultkitcli.gemspec
gem install ./vaultkitcli-0.1.0.gem

# Verify installation
vkit --version

4. Initialize & Connect

# Authenticate
vkit login

# Register your first datasource
vkit datasource add \
  --id demo_db \
  --engine postgres \
  --username readonly_user \
  --password $DB_PASSWORD \
  --config '{
    "host": "localhost",
    "port": 5432,
    "database": "analytics"
  }'

# Discover schema
vkit scan demo_db --apply

5. Query Data

# Submit AQL query
vkit request --datasource demo_db --aql '{
  "source_table": "users",
  "columns": ["id", "email", "created_at"],
  "limit": 10
}'

# Fetch results (use grant ID from previous command)
vkit fetch --grant grant_abc123xyz

🎉 You’re now querying data through VaultKit! Continue to Detailed Setup for production configuration.

Detailed Setup

Installation Options

Option A: From Source (Recommended for Development)

# Clone and install CLI
git clone https://github.com/yourorg/vaultkitcli.git
cd vaultkitcli
bundle install
gem build vaultkitcli.gemspec
gem install ./vaultkitcli-0.1.0.gem

# Clone and build FUNL
git clone https://github.com/yourorg/funl.git
cd funl
go build -o funl ./cmd/funl
./funl serve --port 8080

Option B: Using Docker (Recommended for Production)

# docker-compose.yml
version: '3.8'
services:
  funl:
    image: vaultkit/funl:0.1.0
    ports:
      - "8080:8080"
    environment:
      - FUNL_PUBLIC_KEY=/keys/vaultkit_public.pem
    volumes:
      - ./vaultkit_public.pem:/keys/vaultkit_public.pem:ro
    healthcheck:
      test: ["CMD", "curl", "-f", "http://localhost:8080/health"]
      interval: 10s
      timeout: 3s
      retries: 3

Environment Configuration

Create a configuration file for persistent settings:

# ~/.vkit/config.yaml
funl_url: "http://localhost:8080"
private_key_path: "/path/to/vaultkit_private.pem"
public_key_path: "/path/to/vaultkit_public.pem"
default_datasource: "production_db"
audit_log_path: "/var/log/vaultkit/audit.log"

Add environment variables to your shell profile:

# ~/.bashrc or ~/.zshrc
export VKIT_PRIVATE_KEY="/path/to/vaultkit_private.pem"
export VKIT_PUBLIC_KEY="/path/to/vaultkit_public.pem"
export FUNL_PUBLIC_KEY="/path/to/vaultkit_public.pem"
export FUNL_URL="http://localhost:8080"
export VKIT_CONFIG_PATH="$HOME/.vkit/config.yaml"

Datasource Configuration

VaultKit supports multiple credential storage backends:

Built-in Storage (Development):

vkit datasource add \
  --id staging_db \
  --engine postgres \
  --username app_user \
  --password $DB_PASSWORD \
  --config '{
    "host": "staging.db.internal",
    "port": 5432,
    "database": "analytics",
    "ssl_mode": "require",
    "connect_timeout": 10
  }'

HashiCorp Vault (Production):

vkit datasource add \
  --id production_db \
  --engine postgres \
  --credential-backend vault \
  --vault-path secret/data/databases/production \
  --config '{
    "host": "prod.db.internal",
    "port": 5432,
    "database": "analytics",
    "ssl_mode": "verify-full"
  }'

AWS Secrets Manager:

vkit datasource add \
  --id cloud_db \
  --engine postgres \
  --credential-backend aws-secrets \
  --secret-arn arn:aws:secretsmanager:us-east-1:123456789:secret:db-creds \
  --config '{
    "host": "rds.amazonaws.com",
    "port": 5432,
    "database": "production"
  }'

Policy Setup

Initialize your policy repository:

# Create policy repository structure
mkdir -p vaultkit-policies/{policies,registries,datasources}
cd vaultkit-policies

git init
git add .
git commit -m "Initialize VaultKit policies"

# Link VaultKit to your policy repo
vkit policy init --repo $(pwd)

Create your first policy (policies/base_access.yaml):

id: analyst_basic_access
description: Basic read access for analysts with PII masking
priority: 100

match:
  datasets:
    - customers
    - orders

context:
  requester_role: analyst
  environment: production

rules:
  - field_category: pii
    action: mask
    mask_type: partial
    reason: "PII must be masked for analysts"

  - field_category: financial
    action: require_approval
    approver_role: finance_manager
    ttl: "2h"
    reason: "Financial data requires approval"

  - default:
      action: allow
      ttl: "8h"

Build and deploy the policy bundle:

# Validate policies
vkit policy validate

# Build bundle
vkit policy bundle --output bundle.tar.gz

# Deploy to active control plane
vkit policy deploy --bundle bundle.tar.gz

Use Cases

1. Secure AI Agent Access

Enable LLM-powered agents to query production databases without exposing credentials. VaultKit enforces policies that restrict which tables and columns AI agents can access, with automatic masking of sensitive fields.

Problem:

VaultKit Solution:

# policies/ai_agent_restrictions.yaml
id: ai_agent_restrictions
match:
  fields:
    category: pii

context:
  requester_role: ai_agent
  environment: production

action:
  mask: true
  mask_type: hash
  reason: "PII must be hashed for AI agents"
  ttl: "15m"

How it works:

  1. AI agents receive short-lived session tokens (15 minutes)
  2. All PII fields automatically hashed before results return
  3. Agents can analyze patterns without accessing raw sensitive data
  4. Every query logged with AI agent identity

CLI Usage:

# AI agent requests data
vkit request \
  --datasource production_db \
  --role ai_agent \
  --aql '{
    "source_table": "customer_behavior",
    "columns": ["user_id", "email", "purchase_amount"],
    "filters": [{"field": "purchase_amount", "operator": "gt", "value": 1000}]
  }'

# Result: email field is hashed
# {
#   "user_id": 12345,
#   "email": "e3b0c44298fc1c149afbf4c8996fb92427ae41e4649b934ca495991b7852b855",
#   "purchase_amount": 1250.00
# }

2. Cross-Region Compliance (GDPR, CCPA, HIPAA)

Automatically mask or deny access to sensitive fields based on user location and data residency requirements.

Problem:

VaultKit Solution:

# policies/gdpr_protection.yaml
id: gdpr_cross_region_deny
match:
  dataset: eu_customers
  fields:
    category: pii

context:
  requester_region: US
  dataset_region: EU

action:
  deny: true
  reason: "Cross-region PII access forbidden due to GDPR Article 44"
  audit_flag: compliance_violation

---
id: ccpa_disclosure_logging
match:
  dataset: california_residents

context:
  requester_region: ANY

action:
  allow: true
  ttl: "1h"
  audit_metadata:
    ccpa_disclosure: true
    data_subject_rights: "User has right to know about this access"

How it works:

Multi-Region Access Pattern:

# US analyst attempts to query EU data
vkit request --datasource eu_customers_db --aql '{...}'

# Response:
# ❌ Access Denied
# Reason: Cross-region PII access forbidden due to GDPR Article 44
# Policy: gdpr_cross_region_deny
# Audit ID: audit_20240115_abc123

3. Just-In-Time Access (Break-Glass)

Developers can request temporary elevated access to production data with automatic approval workflows and audit trails.

Problem:

VaultKit Solution:

# policies/financial_requires_approval.yaml
id: financial_break_glass
match:
  fields:
    category: financial

context:
  environment: production
  requester_role: engineer

action:
  require_approval: true
  approver_role: finance_manager
  approval_metadata_required:
    - incident_ticket
    - business_justification
  ttl: "1h"
  reason: "Financial data access requires approval"
  auto_revoke: true

CLI Usage:

# Engineer requests emergency access
vkit request \
  --datasource production_db \
  --approval-required \
  --reason "Investigating payment processing failure - Ticket INC-5432" \
  --metadata '{"incident_ticket": "INC-5432", "business_justification": "Payment processor reporting transaction mismatch"}' \
  --duration "2h" \
  --aql '{
    "source_table": "transactions",
    "columns": ["transaction_id", "amount", "status"],
    "filters": [{"field": "status", "operator": "eq", "value": "failed"}]
  }'

# Response:
# ⏳ Approval Required
# Request ID: req_20240115_xyz789
# Status: PENDING
# Approver: finance_manager
# Expires: 2024-01-15 18:30 UTC

Approval Workflow:

# Finance manager reviews request
vkit approval list --pending

# Approve with notes
vkit approval grant \
  --request-id req_20240115_xyz789 \
  --notes "Approved for incident resolution. Access limited to failed transactions only."

# Engineer notified and can fetch data
vkit fetch --grant grant_approved_abc123

Audit Trail Output:

{
  "request_id": "req_20240115_xyz789",
  "requester": "engineer@company.com",
  "requester_role": "engineer",
  "requested_at": "2024-01-15T16:00:00Z",
  "approved_by": "finance.manager@company.com",
  "approved_at": "2024-01-15T16:05:32Z",
  "approval_reason": "Approved for incident resolution",
  "access_granted": "2024-01-15T16:05:32Z",
  "access_expires": "2024-01-15T18:05:32Z",
  "queries_executed": 3,
  "rows_accessed": 147,
  "incident_ticket": "INC-5432",
  "auto_revoked": true
}

4. Time-Restricted Access Windows

Enforce access controls based on business hours, maintenance windows, or compliance requirements.

Problem:

VaultKit Solution:

# policies/time_restricted_access.yaml
id: business_hours_only
match:
  dataset: audit_logs
  environment: production

context:
  time:
    start: "08:00"
    end: "18:00"
    timezone: "America/Toronto"
    days: ["monday", "tuesday", "wednesday", "thursday", "friday"]

action:
  allow: true
  reason: "Access allowed during business hours"
  ttl: "1h"

---
id: after_hours_deny
match:
  dataset: audit_logs
  environment: production

context:
  time:
    outside_window: true

action:
  deny: true
  reason: "Audit log access restricted to business hours only"
  alert_security_team: true

How it works:

CLI Usage:

# Analyst attempts to query audit logs at 10 PM
vkit request --datasource production_db --aql '{
  "source_table": "audit_logs",
  "columns": ["user_id", "action", "timestamp"],
  "limit": 100
}'

# Response (if outside business hours):
# ❌ Access Denied
# Reason: Audit log access restricted to business hours only
# Policy: after_hours_deny
# Business hours: Mon-Fri 08:00-18:00 America/Toronto
# Current time: Friday 22:15 America/Toronto

5. Multi-Tenant SaaS Data Isolation

Ensure customers in a SaaS platform can only access their own data through automatic tenant filtering.

Problem:

VaultKit Solution:

# policies/tenant_isolation.yaml
id: enforce_tenant_boundary
match:
  datasets:
    - customers
    - orders
    - invoices

context:
  requester_role: customer_user

action:
  allow: true
  inject_filter:
    field: tenant_id
    operator: eq
    value: ""
  reason: "Automatic tenant isolation enforced"
  audit_metadata:
    data_isolation: true

How it works:

  1. User authenticates and receives JWT with tenant_id claim
  2. VaultKit automatically injects WHERE tenant_id = 'user_tenant' into every query
  3. Users cannot override or remove tenant filter
  4. All queries logged with tenant context for compliance

Example:

# Customer user submits query (tenant_id: acme_corp)
vkit request --datasource app_db --aql '{
  "source_table": "orders",
  "columns": ["order_id", "total", "created_at"],
  "filters": [{"field": "status", "operator": "eq", "value": "completed"}]
}'

# VaultKit automatically rewrites to:
# SELECT order_id, total, created_at
# FROM orders
# WHERE status = 'completed' AND tenant_id = 'acme_corp'

Policy Examples

Clearance-Based Masking

# policies/clearance_levels.yaml
id: pii_clearance_masking
description: Mask PII based on user clearance level

match:
  fields:
    category: pii

context:
  environment: production

rules:
  # Level 0: No clearance - full masking
  - clearance_level: 0
    action: mask
    mask_type: full
    reason: "No clearance - PII fully masked"

  # Level 1: Basic clearance - partial masking
  - clearance_level: 1
    action: mask
    mask_type: partial
    reason: "Basic clearance - partial PII exposure"

  # Level 2: High clearance - hashed
  - clearance_level: 2
    action: mask
    mask_type: hash
    reason: "High clearance - deterministic hashing"

  # Level 3: Full clearance - no masking
  - clearance_level: 3
    action: allow
    reason: "Full clearance granted"
    ttl: "4h"

Environment-Based Restrictions

# policies/environment_controls.yaml
id: production_restrictions
description: Stricter controls for production environment

match:
  environment: production

rules:
  # PII always masked in production for non-privileged users
  - field_category: pii
    context:
      requester_role: [analyst, engineer, data_scientist]
    action: mask
    mask_type: partial

  # Financial data requires approval in production
  - field_category: financial
    context:
      requester_role: [analyst, engineer]
    action: require_approval
    approver_role: finance_manager
    ttl: "2h"

  # Admin users have full access
  - context:
      requester_role: admin
    action: allow
    ttl: "1h"
    audit_metadata:
      privileged_access: true

Category-Based Policies

# policies/data_categories.yaml
id: category_based_controls
description: Different rules for different data categories

# Healthcare data (HIPAA)
- match:
    fields:
      category: phi
  action:
    require_approval: true
    approver_role: [compliance_officer, medical_director]
    ttl: "30m"
    reason: "PHI access requires compliance approval"
    audit_flag: hipaa_access

# Payment card data (PCI-DSS)
- match:
    fields:
      category: payment_card
  action:
    deny: true
    reason: "Direct payment card data access forbidden"
    alternative: "Use tokenized_card_id instead"

# Internal-only data
- match:
    fields:
      category: internal
  context:
    requester_role: [employee, contractor]
  action:
    allow: true
    ttl: "8h"

Audit Logging

VaultKit provides comprehensive audit logging for compliance and security monitoring.

Audit Log Fields

Every query execution generates an audit record containing:

{
  "audit_id": "audit_20240115_abc123",
  "timestamp": "2024-01-15T16:30:45Z",
  "requester": {
    "user_id": "user_12345",
    "email": "analyst@company.com",
    "role": "analyst",
    "clearance_level": 2,
    "region": "US",
    "ip_address": "192.168.1.100"
  },
  "request": {
    "datasource_id": "production_db",
    "dataset": "customers",
    "columns_requested": ["id", "email", "revenue"],
    "filters": [{"field": "revenue", "operator": "gt", "value": 10000}],
    "aql_query": {...}
  },
  "policy_evaluation": {
    "policies_applied": [
      {
        "policy_id": "analyst_basic_access",
        "action": "mask",
        "fields_affected": ["email"],
        "mask_type": "partial"
      }
    ],
    "approval_required": false,
    "access_granted": true
  },
  "execution": {
    "funl_request_id": "funl_req_xyz789",
    "execution_time_ms": 245,
    "rows_returned": 47,
    "bytes_transferred": 12840
  },
  "metadata": {
    "environment": "production",
    "session_id": "session_abc456",
    "grant_id": "grant_def789",
    "ttl_expires": "2024-01-16T00:30:45Z"
  }
}

Audit Query Examples

# View all queries by a specific user
vkit audit query --user analyst@company.com --limit 100

# View denied access attempts
vkit audit query --action denied --days 7

# View queries requiring approval
vkit audit query --approval-required --status pending

# Export compliance report
vkit audit export \
  --start-date 2024-01-01 \
  --end-date 2024-01-31 \
  --format csv \
  --output compliance_report.csv

# Search for specific dataset access
vkit audit query --dataset customers --environment production

Audit Sinks

VaultKit supports multiple audit log destinations:

SQLite (Development):

audit:
  sink: sqlite
  path: /var/log/vaultkit/audit.db

PostgreSQL (Production):

audit:
  sink: postgres
  connection:
    host: audit-db.internal
    port: 5432
    database: vaultkit_audit
    username: audit_writer
    password_secret: vault:secret/audit/db

S3 (Compliance Archive):

audit:
  sink: s3
  bucket: company-audit-logs
  prefix: vaultkit/
  region: us-east-1
  retention_days: 2555  # 7 years for compliance

Multiple Sinks (Recommended):

audit:
  sinks:
    - type: postgres
      name: primary
      connection: {...}

    - type: s3
      name: archive
      bucket: audit-archive

    - type: webhook
      name: security_monitoring
      url: https://siem.company.com/events
      headers:
        Authorization: "Bearer ${SIEM_TOKEN}"

CLI Reference

Core Commands

# Authentication
vkit login                           # Interactive login
vkit login --token $JWT_TOKEN        # Token-based login
vkit logout                          # Clear session

# Datasource Management
vkit datasource add                  # Register new datasource
vkit datasource list                 # List all datasources
vkit datasource test --id <id>       # Test connection
vkit datasource remove --id <id>     # Remove datasource

# Schema Discovery
vkit scan <datasource_id>            # Discover schema changes
vkit scan --all                      # Scan all datasources
vkit scan <id> --apply               # Update baseline
vkit scan <id> --diff                # Show changes only

# Policy Management
vkit policy init --repo <path>       # Initialize policy repo
vkit policy validate                 # Validate policy syntax
vkit policy bundle                   # Build policy bundle
vkit policy deploy                   # Deploy bundle
vkit policy list                     # List active policies
vkit policy show --id <policy_id>    # Show policy details

# Data Access
vkit request                         # Submit AQL request
vkit fetch --grant <grant_id>        # Retrieve query results
vkit cancel --grant <grant_id>       # Cancel pending request

# Approvals
vkit approval list                   # List pending approvals
vkit approval grant --request <id>   # Approve request
vkit approval deny --request <id>    # Deny request

# Audit
vkit audit query                     # Query audit logs
vkit audit export                    # Export audit data

# Administration
vkit user list                       # List users
vkit user create                     # Create user
vkit user set-role                   # Update user role
vkit session list                    # List active sessions
vkit session revoke --id <session>   # Revoke session

Request Command Examples

# Simple query
vkit request \
  --datasource production_db \
  --aql '{"source_table": "users", "columns": ["id", "email"], "limit": 10}'

# Query with filters
vkit request \
  --datasource production_db \
  --aql '{
    "source_table": "orders",
    "columns": ["order_id", "total"],
    "filters": [
      {"field": "status", "operator": "eq", "value": "completed"},
      {"field": "total", "operator": "gt", "value": 100}
    ]
  }'

# Query requiring approval
vkit request \
  --datasource production_db \
  --approval-required \
  --reason "Q4 financial analysis" \
  --metadata '{"project": "annual_review"}' \
  --aql '{...}'

# Query with custom TTL
vkit request \
  --datasource staging_db \
  --ttl "2h" \
  --aql '{...}'

Security Best Practices

Key Management

✅ DO:

❌ DON’T:

Policy Design

✅ DO:

❌ DON’T:

Deployment

✅ DO:

❌ DON’T:

Contributing

We welcome contributions! Please see our Contributing Guide for details.

Development Setup

# Clone repositories
git clone https://github.com/yourorg/vaultkit.git
git clone https://github.com/yourorg/funl.git

# VaultKit (Ruby/Rails)
cd vaultkit
bundle install
rails db:create db:migrate
rails server

# FUNL (Go)
cd funl
go mod download
go run cmd/funl/main.go serve

Running Tests

# VaultKit tests
bundle exec rspec

# FUNL tests
go test ./...

# Integration tests
./scripts/integration_tests.sh

Documentation

Roadmap

Q1 2025

Q2 2025

Q3 2025

License

VaultKit is licensed under the Apache License 2.0. See LICENSE for details.

Support

Acknowledgments

VaultKit is built with and inspired by:

Built with ❤️ by the VaultKit team

This site is open source. Improve this page.
